Tips and Tricks in the Laserfiche Workflow Designer

5 min read
  • Information Technology
  • Process Automation

Laserfiche Solution Contributed By: Jacob Seene, Software Engineer, Laserfiche

Laserfiche Workflow for self-hosted systems is a very efficient tool that helps automate and improve various processes. Here are some tips and tricks to help you get the most out of some of those features.

Select Activities Quickly

With more than 60 built-in Laserfiche Workflow activities to choose from, you can use the following tips to quickly find the specific activity you need:

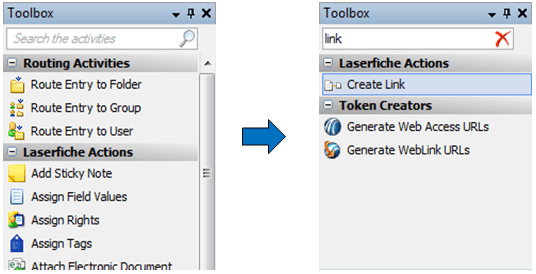

  • To search for an activity, use any part of the name or a keyword related to that activity in the Toolbox search field:

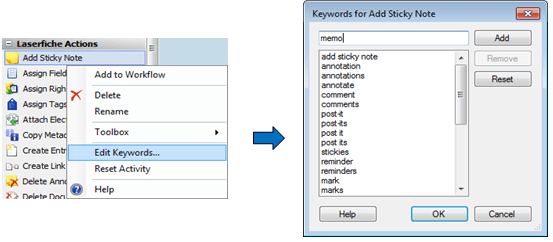

  • You can even view and edit the list of keywords that pertain to each activity. Simply right-click on the activity name and select Edit Keywords.

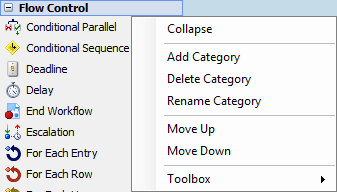

  • To add, remove, rename and reorder categories, right-click on the category name and choose any of the following options:
  • Use the “Frequently Used Activities” category to quickly find the activities you use most often.

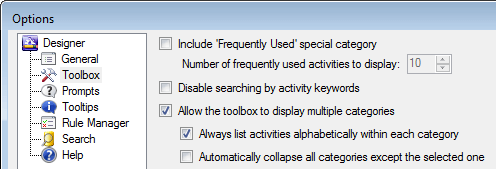

  • Decide whether to include the “Frequently Used” category by checking the appropriate box in the Designer – Toolbox – Options menu. While there, you can also change the way activities are listed within each category.

Configure Your Activities

Once you have selected the activities you want to use, make sure you configure them correctly.

  • One of the most important steps in configuring activities is accurately naming them. Intuitive names can help you:
    • Convert your process into a workflow. It will be easier to see how your workflow correlates with the existing process you are replicating.
    • Keep track of what parts of the process you’ve modeled.
    • Ensure that others understand your workflow.

    To rename Workflow activities, simply select the activity’s Properties and change the Activity Name.

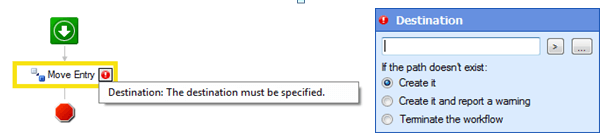

  • If you haven’t configured your activity completely, you will see a validation icon. If you click on the icon, you will see details about what needs to be fixed. The icons will lead you to the source of the problem.

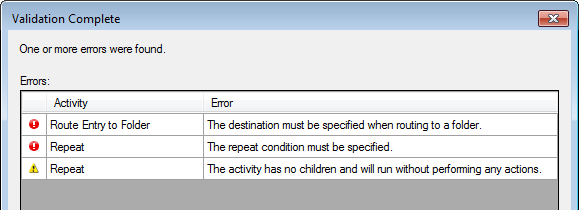

  • Your workflow will also be validated before it is published.

Validated Workflow

    • Don’t ignore warnings that appear in this window. Not addressing these errors will cause your workflows to not work properly or to fail.
    • To go to the error in the workflow, double-click on the problem activity.

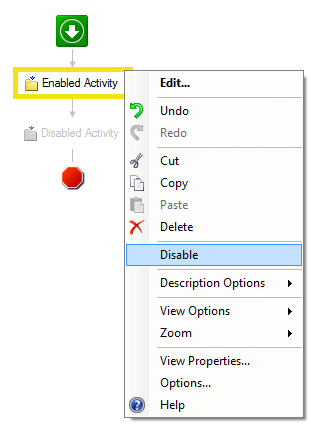

  • You may also disable certain activities when you want to publish an unfinished workflow. This is helpful for testing part of the workflow while disabling activities that you don’t want to run or that contain errors.
    • You can do this by right-clicking on the activity you want to disable.

  • If you make mistakes, you can always use the undo/redo functionality in the Designer Pane, Rule Manager and Condition Editor to undo them.

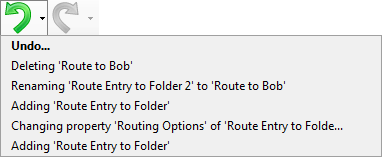

    • By clicking on the small black arrow next to the undo/redo buttons, you’ll pull up a history of the actions you’ve taken. From there, you can undo/redo more than one event at once.Designer Pane

Use Tokens Optimally

Tokens can be very helpful in configuring your activities by acting as placeholders for information that will be available when the activity runs. Here are a few suggestions for optimizing your use of tokens in Laserfiche Workflow.

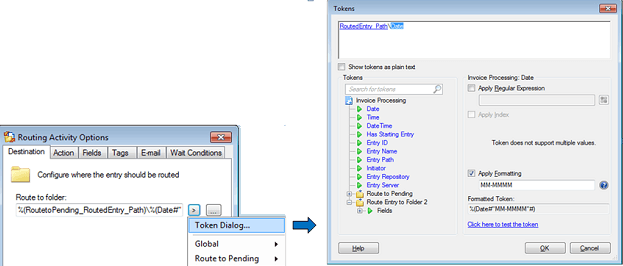

  • You can use the Token Dialog menu to add, remove and format multiple tokens for the same text box all in one place. Token Dialog Menu

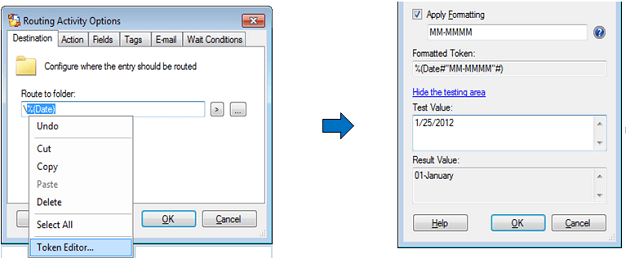

  • You can format tokens to display their values differently. For example, instead of the full date, you can format the token to display the month only. You can also test the formatting by inserting a Test Value and then looking at whether the Result Value returns what you expect. Routing Activity Options

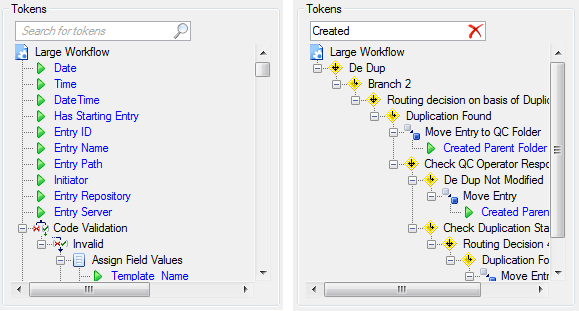

  • To quickly find the token you are looking for use the Search for Tokens option in the Token Dialog. Tokens Created Option

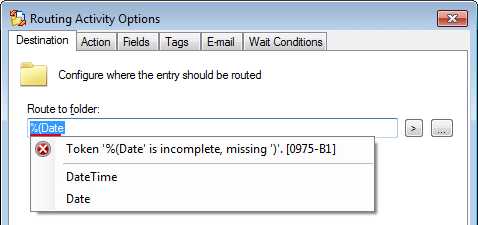

  • To easily validate your tokens, look for the red underline. The token will be underlined in red if there is an error associated with it. Right-clicking on the token will tell you what is wrong and/or provide a list of suggested replacements. Validate Your Tokens

Organize Your Workflows

Once you’ve published your workflows, organize them using the Rule Manager.

  • To do this, you can store your published workflows in different folders.

Workflow Tips Rule Manager

  • Certain special folders are automatically populated with workflows based on a variety of factors, such as “My Workflows,” “All Recently Published,” etc. Workflow Tips 18 Description Options

Present Your Workflows to Others

Discussing your workflows in a meeting is easy, thanks to the following features:

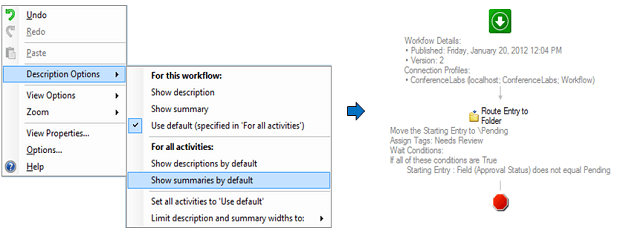

  • To show a summary of each activity’s configuration settings in your workflow, choose “Show summaries by default” from the “Description Options” context menu.Workflow Tips 18 Description Options

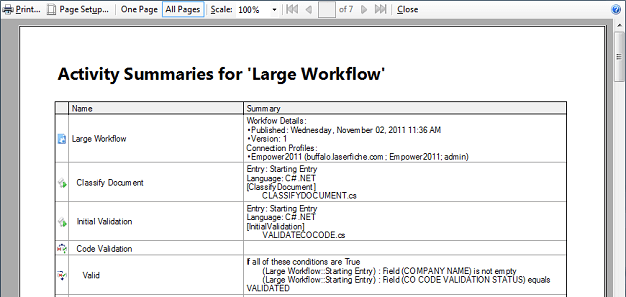

  • You can also print activity summaries as a table and then cross-reference them with the workflow canvas. In the Workflow Properties dialog, select the Summary tab, check “Display as table” and then click Print.Workflow Properties Dialog
  • In addition to activity summaries, you can print the following:
    • Workflows
    • Starting rules
    • Search results
    • Reports and graphs
